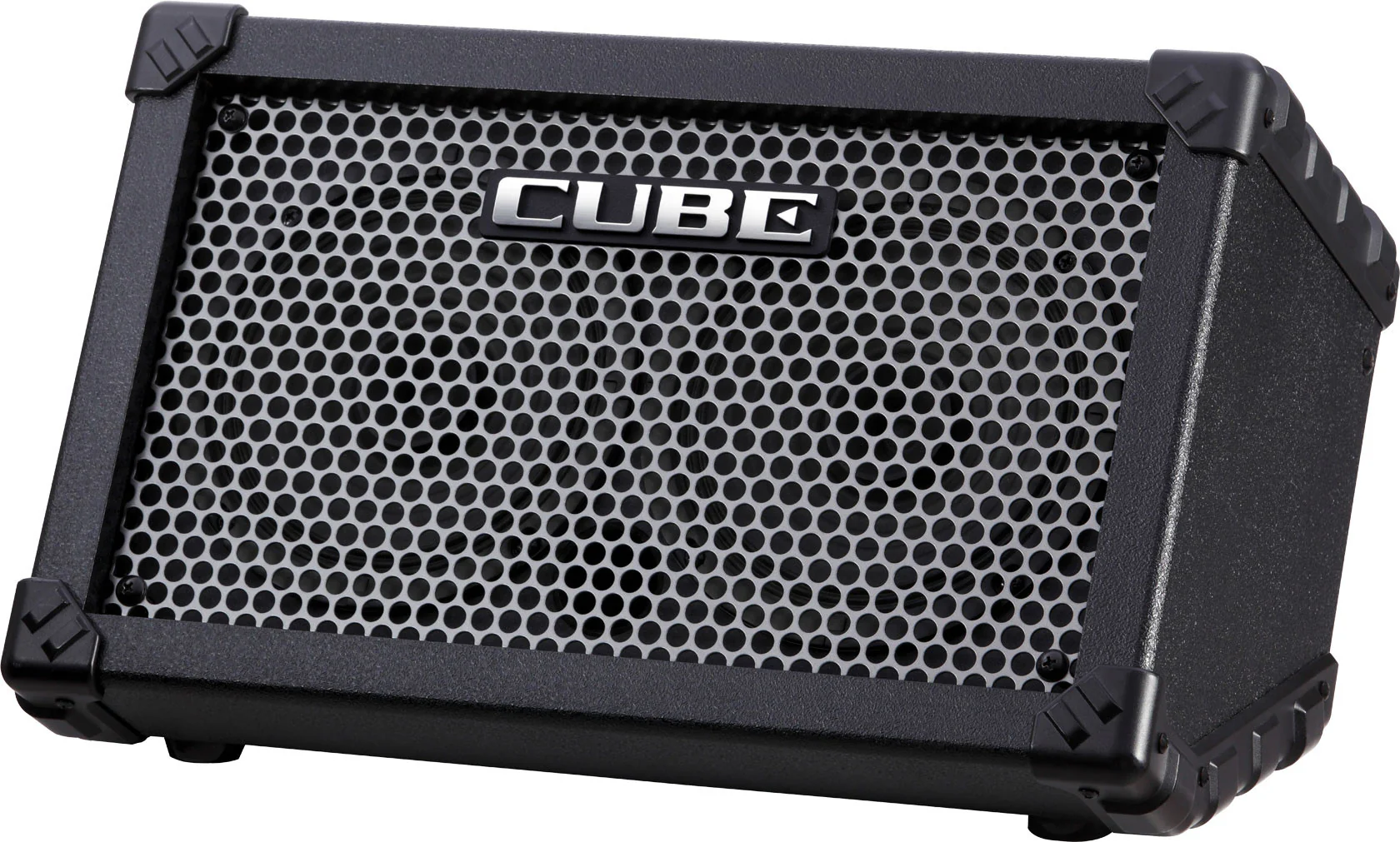

Roland Street Cube Guitar Amplifier
THE ULTIMATE AMP FOR TRAVELING MUSICIANS
If you’re a musician who’s on the move, the new CUBE Street is for you. Whether you’re running to a rehearsal, lesson, street gig, or any situation that requires portability and versatility, the CUBE Street is a battery-powered marvel that’s ready to travel fast. The CUBE Street sounds amazing and is capable of high-volume output thanks to dual digital power amps and a pair of high-performance speakers. And just wait until you hear the built-in effects and amp models!
Rated Power Output2.5 W + 2.5 WNominal Input Level (1 kHz)MIC/LINE Channel: -50 / -10 dBu
GUITAR/INSTRUMENT Channel: -10 dBu

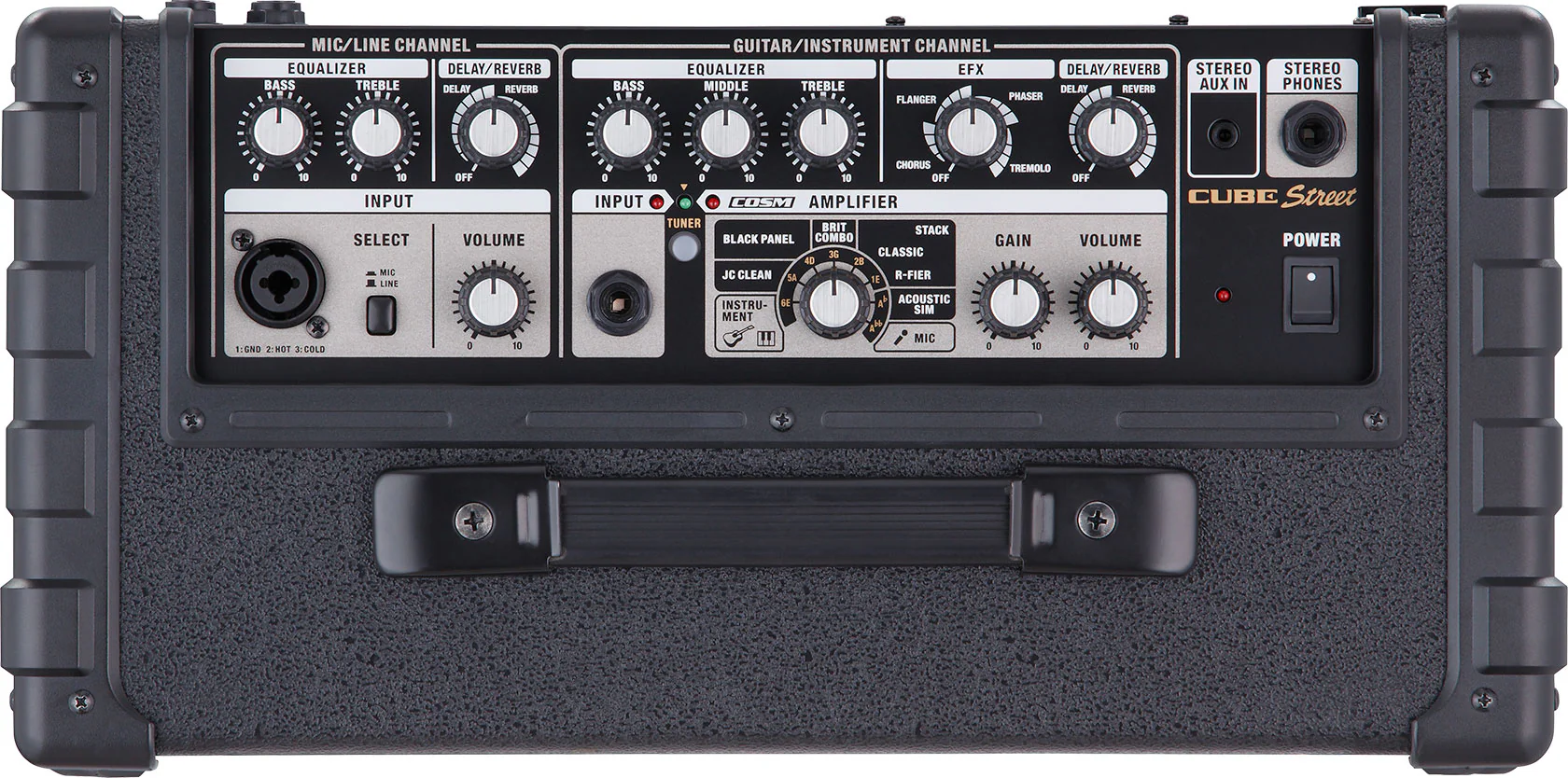

STEREO AUX IN: -10 dBuSpeakers16 cm (6.5 inches) x 2ControlsPOWER Switch
(MIC/LINE Channel)
SELECT Switch (MIC/LINE), VOLUME Knob, EQUALIZER Knobs (BASS, TREBLE), DELAY/REVERB Knob
(GUITAR/INSTRUMENT Channel)
TUNER Switch, TYPE Switch, GAIN Knob, VOLUME Knob, EQUALIZER Knobs (BASS, MIDDLE, TREBLE), EFX Knob, DELAY/REVERB KnobIndicatorsTUNER
POWERConnectors(MIC/LINE Channel)
Input Jacks (XLR type, 1/4" phone type), Foot Switch Jack (1/4" TRS phone type)
(GUITAR/INSTRUMENT Channel)
Input Jack (1/4" phone type), Foot Switch Jack (1/4" TRS phone type)

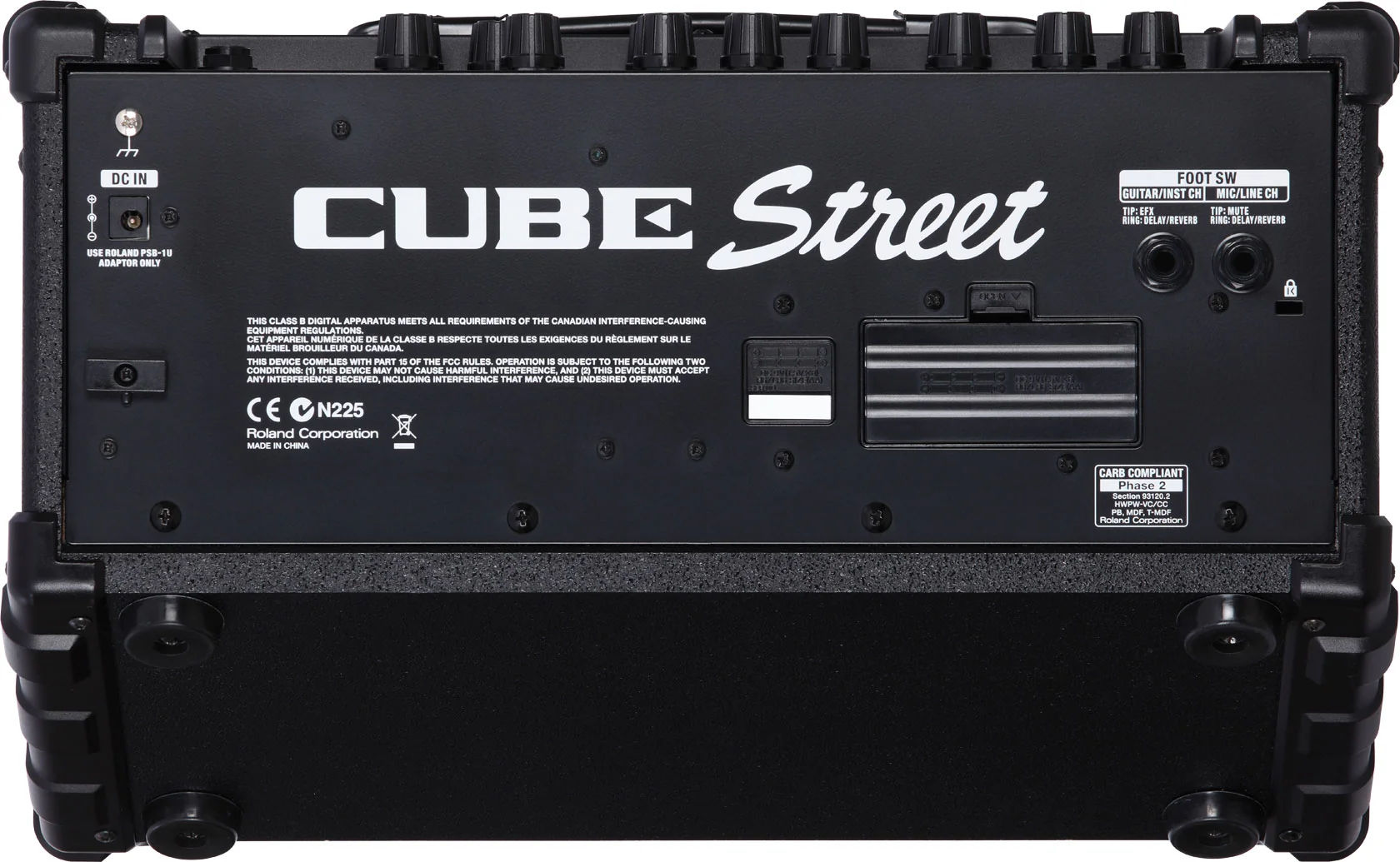

STEREO AUX IN Jack (Stereo miniature phone type), PHONES Jack (Stereo 1/4" phone type), AC Adaptor JackPower SupplyDC 9 V: AC Adaptor or Dry Battery (LR6 (AA) type)(optional) x 6Current Draw235 mAAccessoriesPower Cord
AC Adaptor
Owner's ManualOptionsCarrying Case
Foot Switch (BOSS FS-5U, FS-6, FS-7)
Connection Cable (PCS-31L)SIZE AND WEIGHTWidth415 mm
16-3/8 inchesDepth295 mm
11-5/8 inchesHeight250 mm
9-7/8 inchesWeight5.9 kg
13 lbs. 1 oz.
